PANEL COOLER
Panel Air Conditioner - Duct Series
-
Panel Air Conditioner(Duct Series)
-
HOW IT WORKS
PAC Duct Series are used in panels, where there is no space to fix face mountable model.
| TPA 060 | TPA 090 | TPA 135 | TPA 200 | TPA 300 | PAC 450 | PAC 600 | Model |
|---|---|---|---|---|---|---|---|
| 700 | 1050 | 1500 | 2300 | 3500 | 5250 | 7000 | Cooling Capacity (W) |
| 1 Ph / 230V / 50 Hz | 3Ph / 415V / 50Hz | Power Input | |||||
| 0.34 | 0.59 | 0.90 | 1.24 | 1.27 | 2.1 | 2.7 | Power (KW) |
| R134a | R407c | Refrigerant | |||||
| 35 | 45 | 60 | 85 | 95 | 120 | 130 | Weight (kg) |
| 345 | 380 | 430 | 430 | 430 | 750 | 750 | Dimension W (mm) |
| 370 | 370 | 400 | 495 | 495 | 750 | 750 | D (mm) |
| 675 | 855 | 1080 | 1325 | 1620 | 1175 | 1175 | H (mm) |

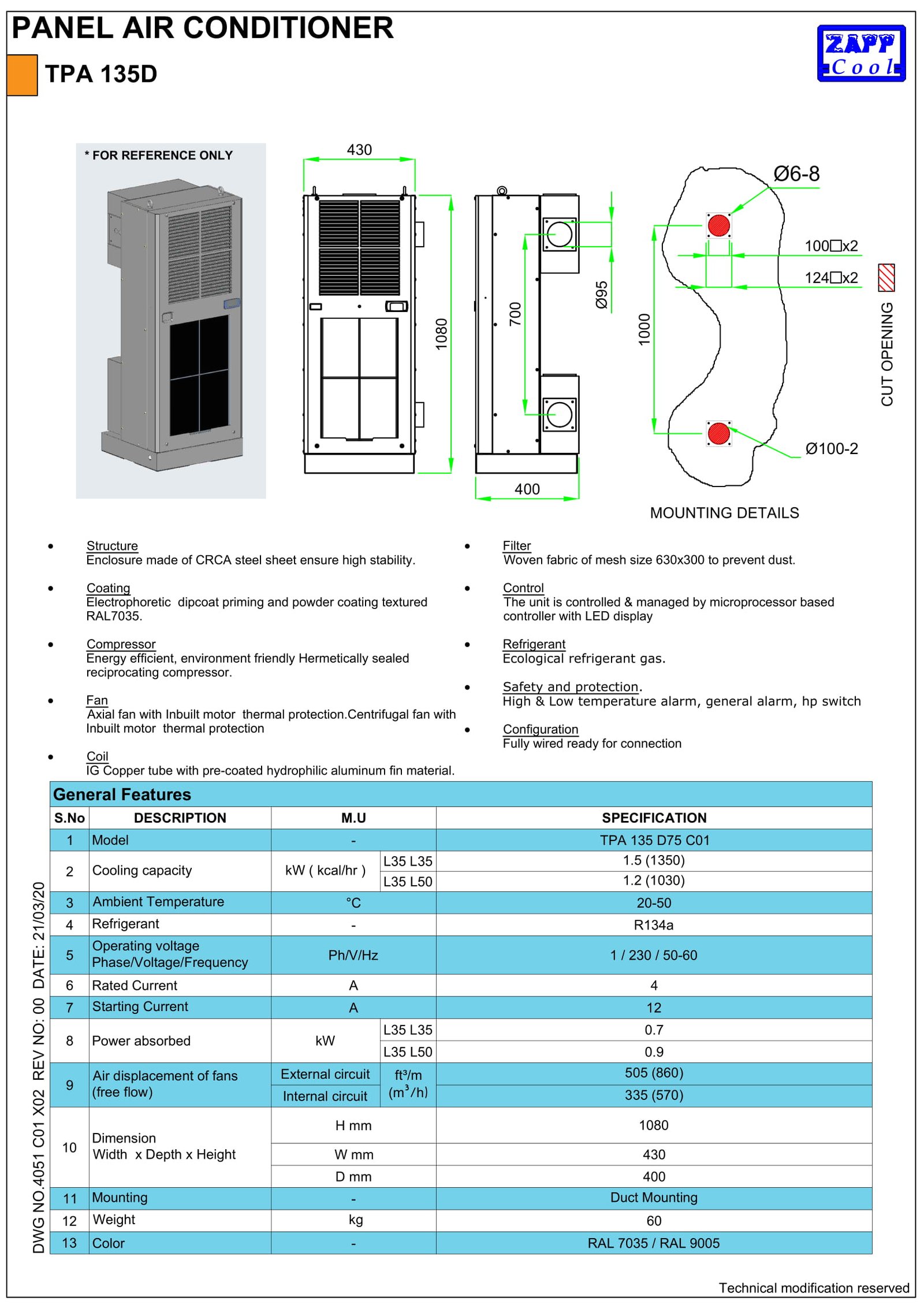

| View | View | View | View | View | View | View | Datasheet |
