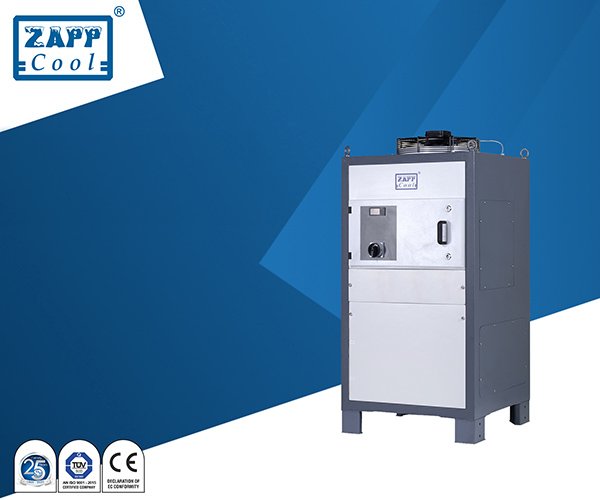

Oil Chiller
-
Oil Chiller
-
HOW IT WORKS
Hydraulic, spindle & coolant oil cooling, ensures accuracy of job within the limit by keeping constant temperature.

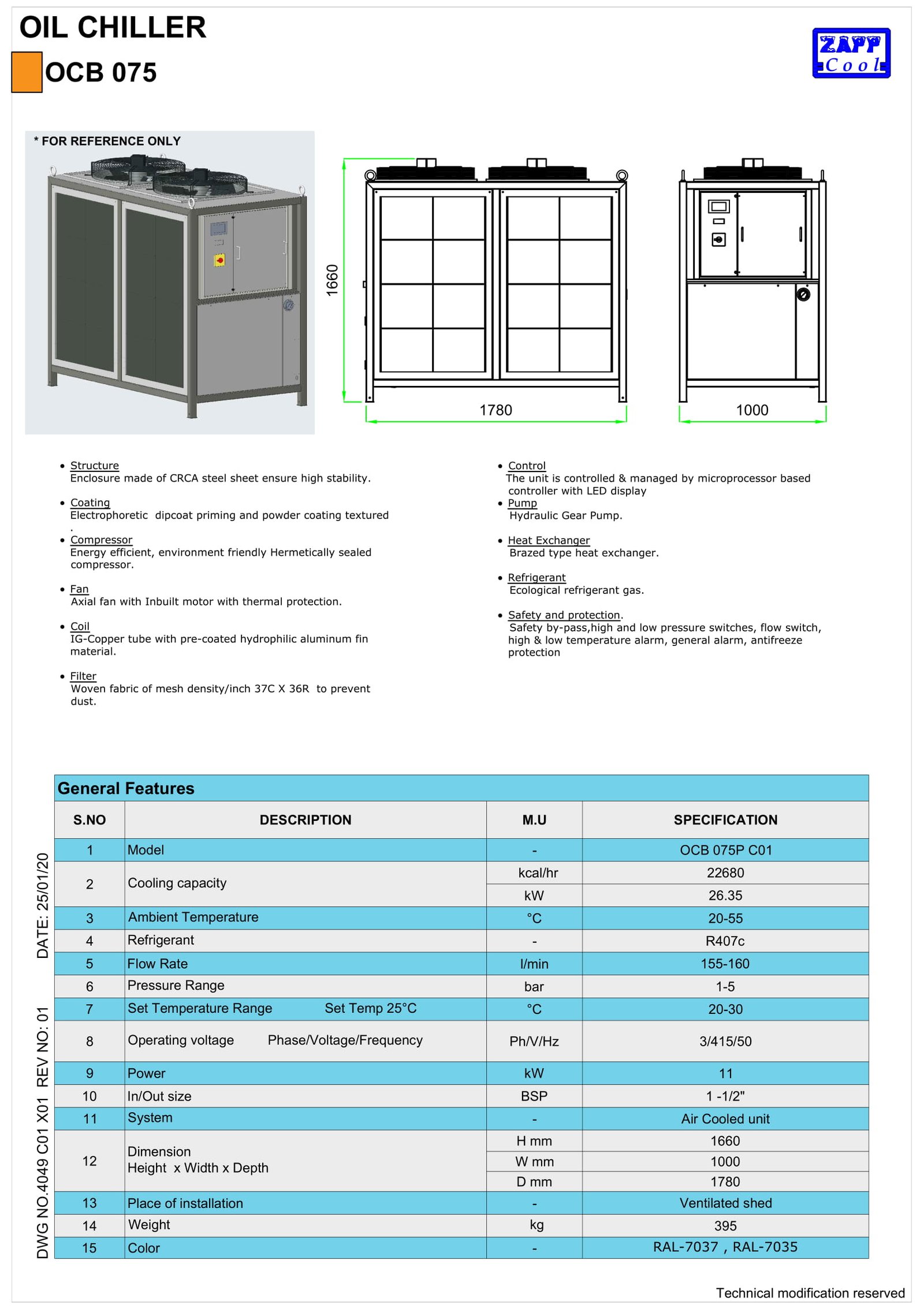

| TOC 005 | TOC 010 | TOC 020 | TOC 030 | TOC 050 | OCB 075 | OCB 100 | Model |
|---|---|---|---|---|---|---|---|
| 1.75 | 3.5 | 7.0 | 10.5 | 17.5 | 26.5 | 35 | Cooling Capacity (kW) |
| 1ph / 230v / 50hz | 3Ph / 415v / 50hz | Operating Voltage | |||||
| 1.50 | 3.5 | 5.0 | 6.0 | 10.5 | 11.0 | 18.5 | Power (kw) |
| 10 - 15 | 20 - 23 | 35 - 40 | 60 - 70 | 100 - 110 | 155 - 160 | 205 - 215 | Flow Rate (l/min) |
| 1" | 1-1/2" | In / Out Size (BSP) | |||||
| 90 | 110 | 150 | 170 | 300 | 395 | 450 | Weight (kg) |
| 650 | 800 | 1000 | Dimension W (mm) | ||||
| 600 | 900 | 1780 | D (mm) | ||||
| 1300 | 1765 | 1895 | 1600 | H (mm) | |||
| View | View | View | View | View | View | View | Datasheet |
